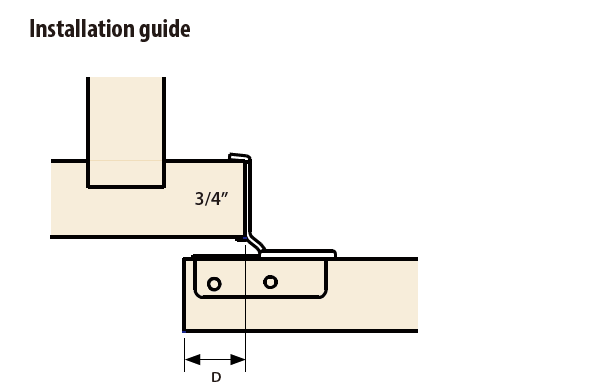

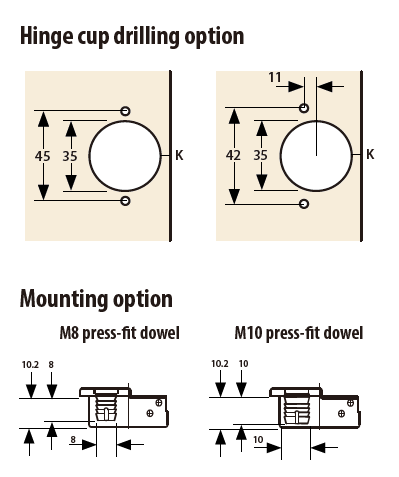

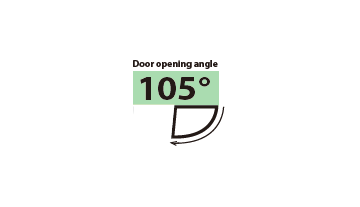

Hinges & Lifts FACE-FRAME (SELF-CLOSE, 2 WAY) Feature Material: steel, cold rolled Frame: full wrap 3/4” (19mm) Closing: self-close Opening angle: 105° Hinge cup depth: 10.2 mm Hinge cup diameter: 35 mm Hinge cup drilling distance (K): 3 mm Door thickness: 14 - 26 mm Mounting: screw or press-fit dowel Adjustment: vertical height by screw Inquire Now Download PDF 35 MM, SELF-CLOSE, 2-WAY ADJUSTABLE 56187 with 5/8" OL OVERLAY (D) Without dowels Dowels on Cup 5/8" Item No. 56187 Item No. 56188 1/2" Item No. 56060 Item No. 56109 7/16" Item No. 56099 Item No. 56189 3/8" Item No. 56190 Item No. 56191 Associated product 56223 55258 56121 150° EASY-ON HINGE FACE-FRAME (SELF-CLOSE, 6 WAY) Previous Page Previous Item Next Item
