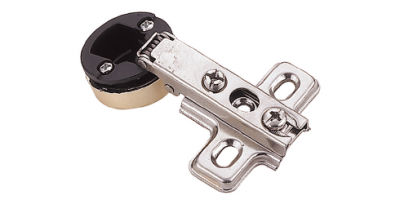

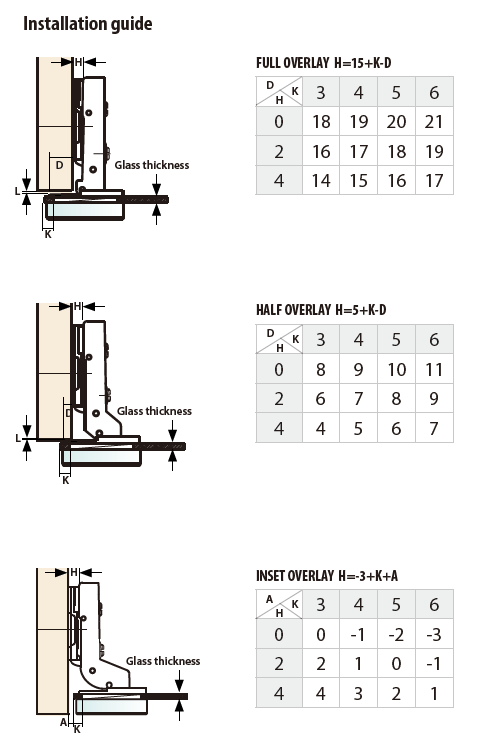

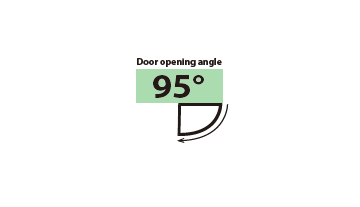

Hinges & Lifts 56058 Feature Material: steel, cold rolled Assembling: slide-on Closing: self-close Opening angle: 95° Hinge cup diameter: 26 mm Hinge cup drilling distance (K): 3 - 6 mm Glass thickness: 4 - 6 mm Adjustment: horizontal side by screw/vertical height by screw/in-and-out depth by screw Inquire Now 26MM, SLIDE-ON, GLASS DOOR Note: The formulas can be used according to different types of hinge arms and they need the figures of both the hinge cup drilling distance "K" and plated height "H". Dimensions in mm. Associated product 55187 55466 55421 55138 Previous Page Previous Item Next Item
