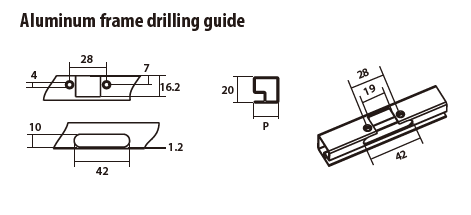

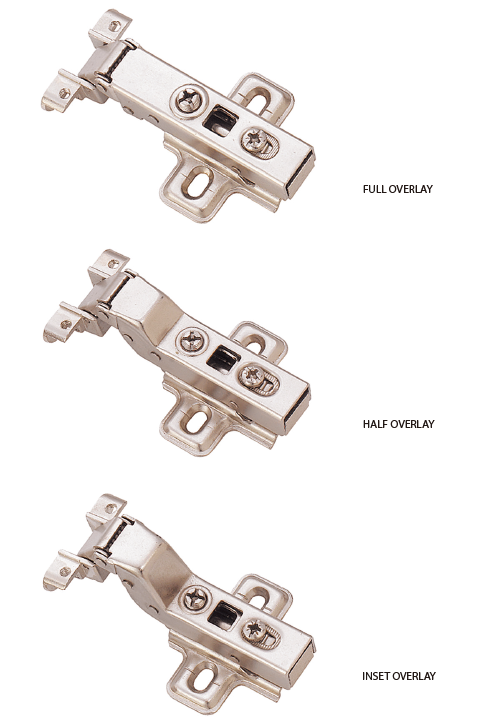

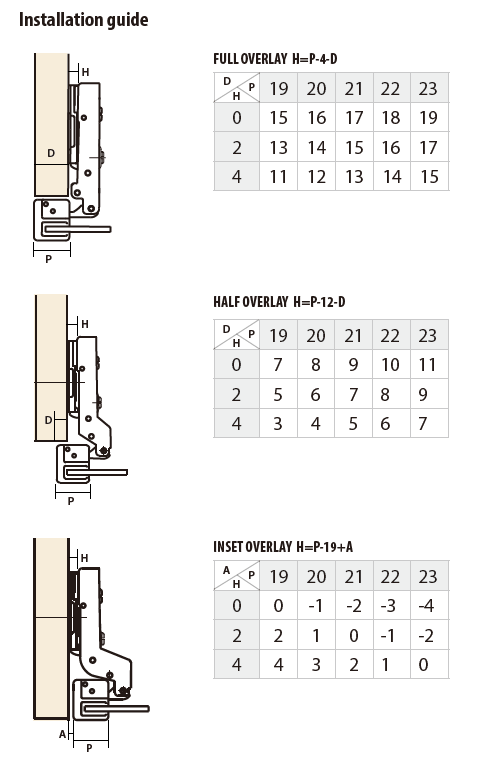

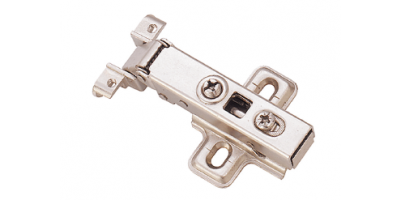

Hinges & Lifts 56223 Feature Material: steel, cold rolled Assembling: clip-on Closing: soft-close Opening angle: 105° Aluminum frame size (P): 19 - 23 mm Mounting: screw or press-fit dowel Adjustment: horizontal side by screw/vertical height by screw/in-and-out depth by screw Inquire Now Download PDF CLIP-ON, SOFT-CLOSE, ALUMINUM FRAME Note: The formulas can be used according to different types of hinge arms and they need the figures of both the hinge cup drilling distance "K" and plated height "H". Dimensions in mm. Soft-close clip-on Self-close slide-on Item No. 56223 Item No. 56224 Associated product BALL BEARING HINGES 55202 55416 55009 Previous Page Previous Item Next Item
