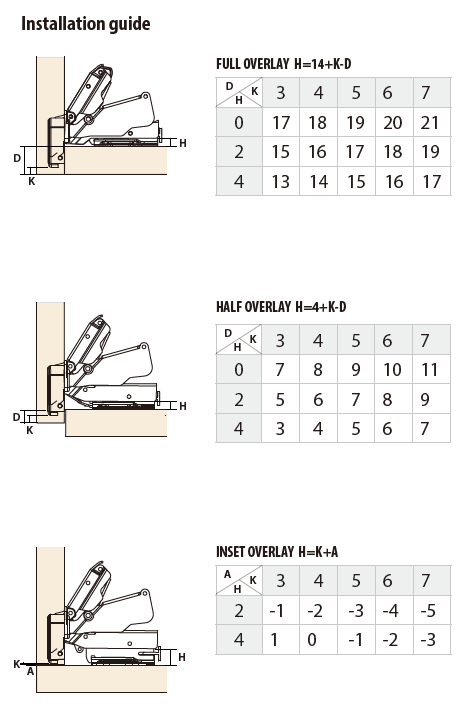

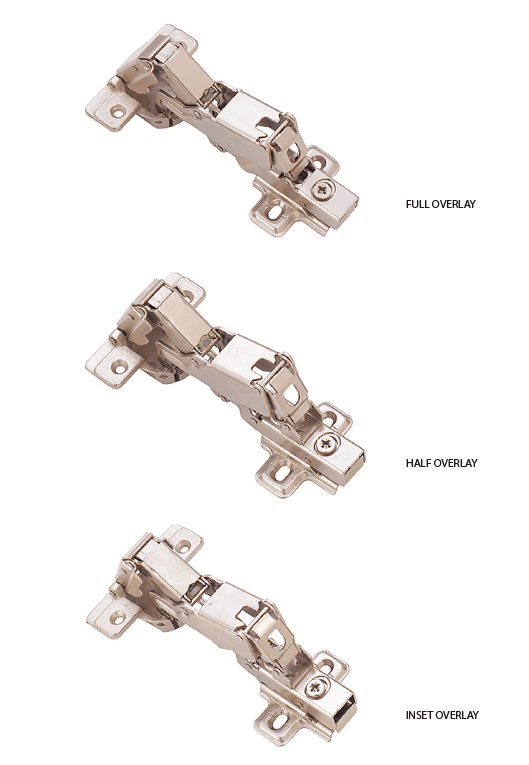

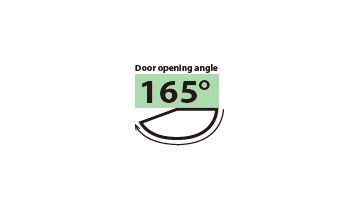

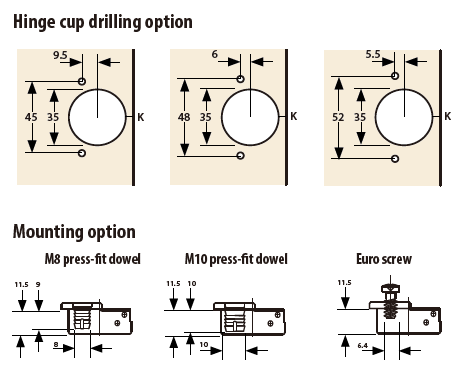

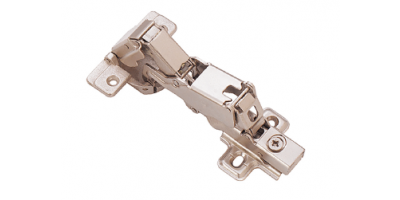

Hinges & Lifts 56145 Feature Material: steel, cold rolled Assembling: clip-on Closing: soft-closing Opening angle: 165° Hinge cup depth: 11.5 mm Hinge cup diameter: 35 mm Hinge cup drilling distance (K): 3 - 7 mm Door thickness: 14 - 26 mm Mounting: screw or press-fit dowel Adjustment: horizontal side by screw/vertical height by screw/in-and-out depth by cam Inquire Now Download PDF 35 MM, CLIP-ON, SOFT-CLOSE, WIDE-ANGLE Note: The formulas can be used according to different types of hinge arms and they need the figures of both the hinge cup drilling distance "K" and plated height "H". Dimensions in mm. Soft-close, clip-on Self-close, clip-on Self-close, slide-on Item No. 56145 Item No. 56134 Item No. 56116 Associated product 55238 55191 DOOR SUPPORT STRUTS 55220 FULL WRAP Previous Page Previous Item Next Item
