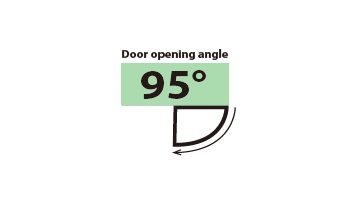

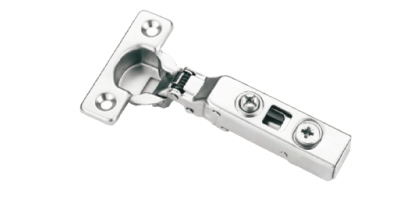

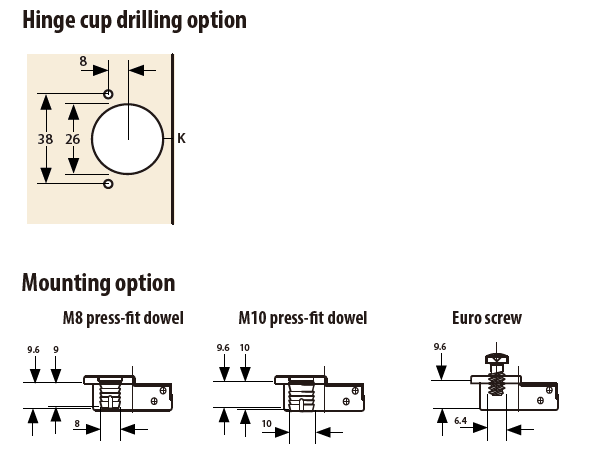

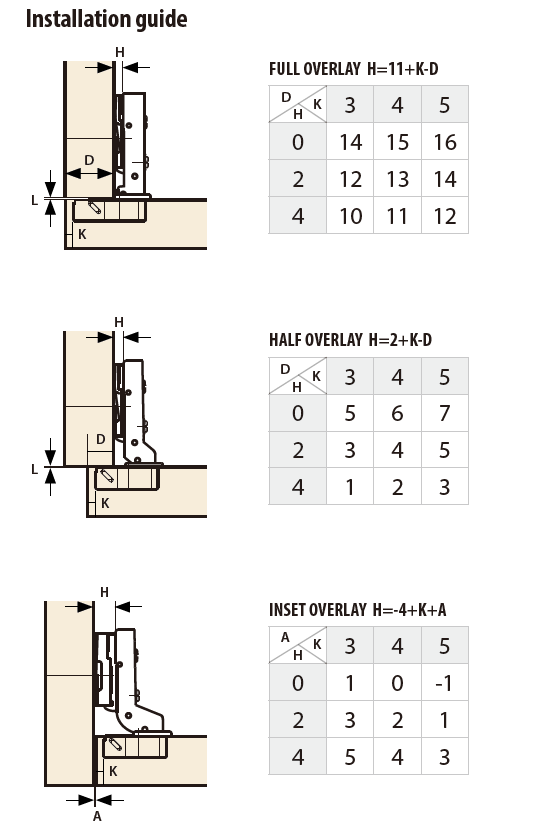

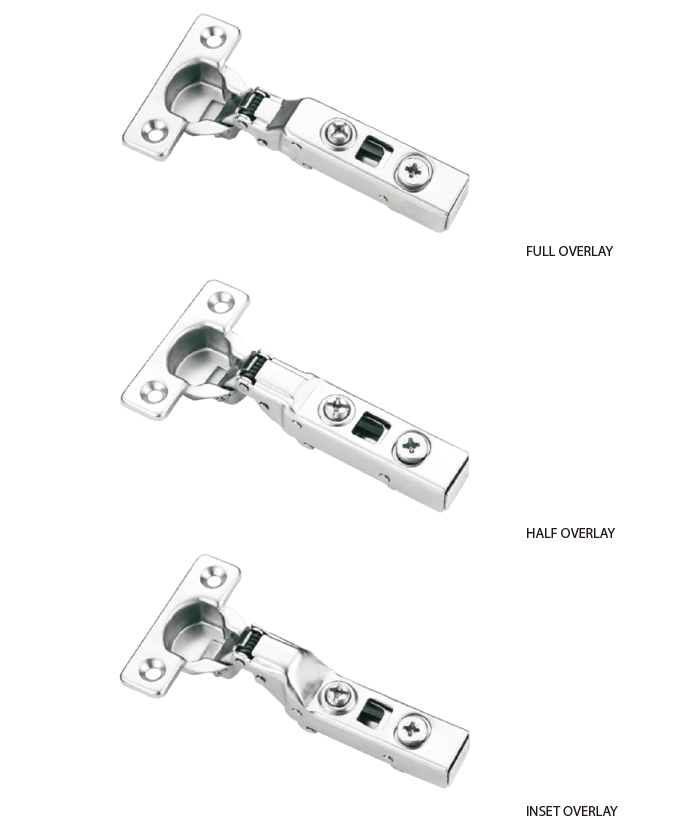

Hinges & Lifts 56219 Feature Material: steel, cold rolled Assembling: clip-on Closing: soft-close Opening angle: 95° Hinge cup depth: 9.6 mm Hinge cup diameter: 26 mm Hinge cup drilling distance (K): 3-7 mm Door thickness: 12-18 mm Mounting: screw or press-fit dowel Adjustment: horizontal side by screw / vertical height by screw / in-and-out depth by cam Inquire Now Download PDF 26 mm CLIP-ON, SOFT-CLOSE Note: The formulas can be used according to different types of hinge arms and they need the figures of both the hinge cup drilling distance "K" and plated height "H". Dimensions in mm. Associated product 56160 56225 56154 56138 Previous Page Previous Item Next Item
