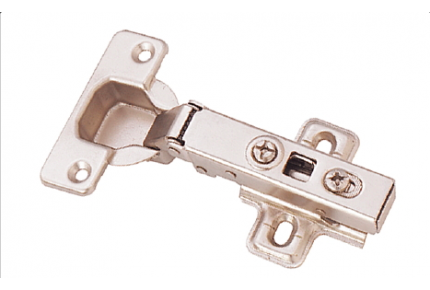

56138

-Material: steel, cold rolled
-Assembling: clip-on
-Closing: soft-close
-Opening angle: 105°
-Hinge cup depth: 11.5 mm
-Hinge cup diameter: 35 mm
-Hinge cup drilling distance (K): 3-7 mm
-Door thickness: 14-22 mm
-Mounting: screw or press-fit dowel
-Adjustment: horizontal side by screw / vertical height by screw / in-and-out depth by screw
