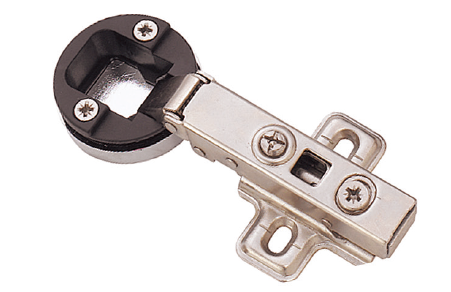

56221

Feature

Material: steel, cold rolled
Assembling: clip-on
Closing: soft-close
Opening angle: 105°
Hinge cup diameter: 35 mm
Hinge cup drilling distance (K): 3 - 6 mm
Glass thickness: 4 - 6 mm
Adjustment: horizontal side by screw
vertical height by screw
in-and-out depth by cam

Inquire Now

Specification

35 MM, CLIP-ON, SOFT-CLOSE, GLASS DOOR

Note: The formulas can be used according to different types of hinge arms and they need the figures of both the hinge cup drilling distance "K" and plated height "H".

Dimensions in mm.

Cam depth adjust	Screw depth adjust
Item No. 56221	Item No. 56222

Description
