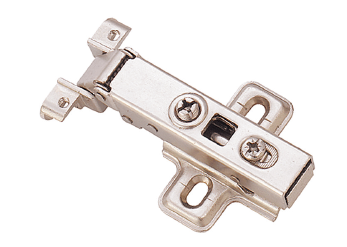

56223

Feature

Material: steel, cold rolled
Assembling: clip-on
Closing: soft-close
Opening angle: 105°
Aluminum frame size (P): 19 - 23 mm
Mounting: screw or press-fit dowel
Adjustment: horizontal side by screw/vertical height by screw/in-and-out depth by screw

Inquire Now

Download PDF

Specification

CLIP-ON, SOFT-CLOSE, ALUMINUM FRAME

Note: The formulas can be used according to different types of hinge arms and they need the figures of both the hinge cup drilling distance "K" and plated height "H".

Dimensions in mm.

Soft-close clip-on	Self-close slide-on
Item No. 56223	Item No. 56224
