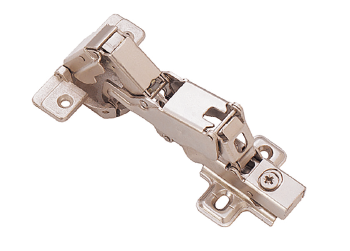

56145

Feature

Material: steel, cold rolled
Assembling: clip-on
Closing: soft-closing
Opening angle: 165°
Hinge cup depth: 11.5 mm
Hinge cup diameter: 35 mm
Hinge cup drilling distance (K): 3 - 7 mm
Door thickness: 14 - 26 mm
Mounting: screw or press-fit dowel
Adjustment: horizontal side by screw/vertical height by screw/in-and-out depth by cam

Inquire Now

Download PDF

Specification

35 MM, CLIP-ON, SOFT-CLOSE, WIDE-ANGLE

Note: The formulas can be used according to different types of hinge arms and they need the figures of both the hinge cup drilling distance "K" and plated height "H".

Dimensions in mm.

Soft-close, clip-on	Self-close, clip-on	Self-close, slide-on
Item No. 56145	Item No. 56134	Item No. 56116

Description
