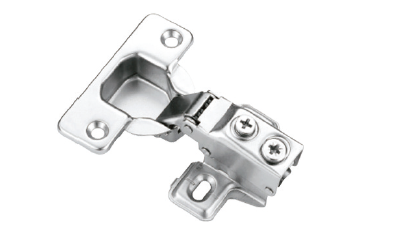

SHORT-ARM (SOFT-CLOSE)

Feature

• Material: steel, cold rolled
• Frame: partial wrap 3/4” (19 mm)
• Closing: soft-close
• Opening angle: 100°
• Hinge cup depth: 11.5 mm
• Hinge cup diameter: 35 mm
• Hinge cup drilling distance (K): 3 mm
• Door thickness: 14 - 22 mm
• Mounting: screw or press-fit dowel
• Adjustment: horizontal side by screw/vertical height by screw/in-and-out depth by cam
