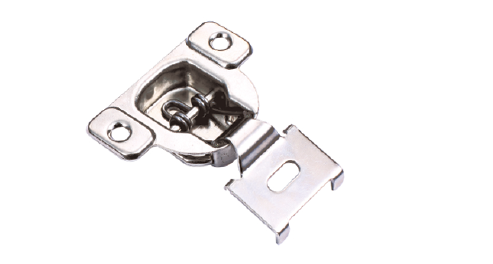

FACE-FRAME (SELF-CLOSE, 2 WAY)

Feature

• Material: steel, cold rolled
• Frame: full wrap 3/4” (19mm)
• Closing: self-close
• Opening angle: 105°
• Hinge cup depth: 10.2 mm
• Hinge cup diameter: 35 mm
• Hinge cup drilling distance (K): 3 mm
• Door thickness: 14 - 26 mm
• Mounting: screw or press-fit dowel
• Adjustment: vertical height by screw
