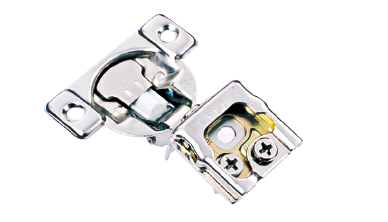

FACE-FRAME (SOFT-CLOSE, 6 WAY)

Feature

Material: steel, cold rolled
Frame: full wrap 3/4” (19 mm)
Closing: soft-close
Opening angle: 105°
Hinge cup depth: 11 mm
Hinge cup diameter: 35 mm
Hinge cup drilling distance (K): 3 mm
Door thickness: 14 - 26 mm
Mounting: screw or press-fit dowel
Adjustment: horizontal side by cam/vertical height by cam/in-and-out depth by cam

Specification

35 MM, SOFT-CLOSE, 6-WAY ADJUSTABLE

SOFT-CLOSE TYPE

OVERLAY (D)	Without dowels	Dowels on Cup
1-1/2"	Item No. 56171	Item No. 56172
1-3/8"	Item No. 56173	Item No. 56174
3/4"	Item No. 56194	Item No. 56195
1/2"	Item No. 56196	Item No. 56208

SELF-CLOSE TYPE

OVERLAY (D)	Without dowels	Dowels on Cup
1-1/2"	Item No. 56197	Item No. 56198
1-3/8"	Item No. 56199	Item No. 56200
3/4"	Item No. 56201	Item No. 56202
1/2"	Item No. 56203	Item No. 56204

Description
