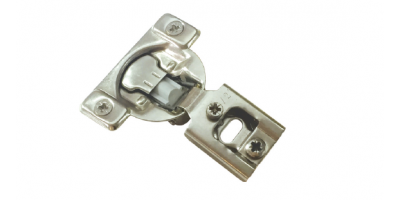

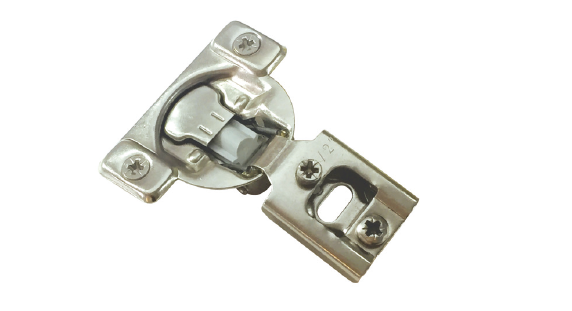

FACE-FRAME (SELF-CLOSE, 6 WAY)

Feature

Material: steel, cold rolled
Frame: full wrap 3/4” (19 mm)
Closing: self-close

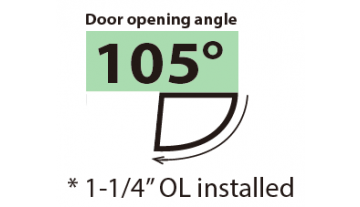

Opening angle: 105°
Hinge cup depth: 11 mm

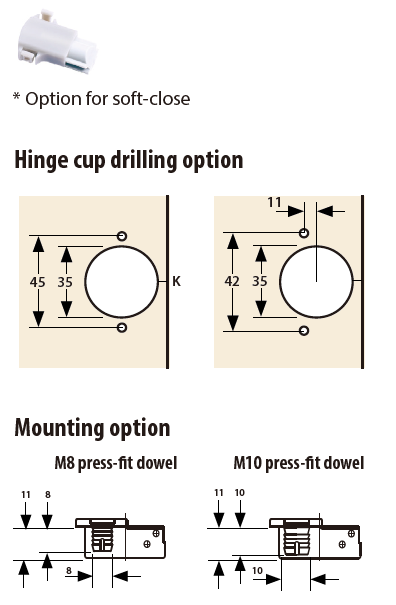

Hinge cup diameter: 35 mm
Hinge cup drilling distance (K): 3 mm
Door thickness: 14 - 26 mm
Mounting: screw or press-fit dowel
Adjustment: horizontal side by screw/vertical height by cam/in-and-out depth by cam

Specification

35 MM, SELF-CLOSE, 6-WAY ADJUSTABLE

56211 with 1/2" OL

SOFT-CLOSE TYPE

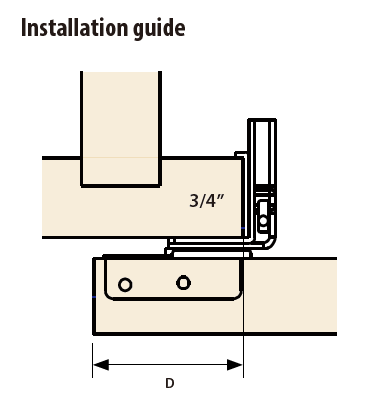

OVERLAY (D)	Without dowels	Dowels on Cup
1-1/4"	Item No. 56205	Item No. 56206
3/4"	Item No. 56207	Item No. 56209
1/2"	Item No. 56210	Item No. 56211

SELF-CLOSE TYPE

OVERLAY (D)	Without dowels	Dowels on Cup
1-1/4"	Item No. 56212	Item No. 56213
3/4"	Item No. 56214	Item No. 56215
1/2"	Item No. 56216	Item No. 56124
