91552

Feature

Material: steel
Closing: self-close
Opening: single extension
Mounting: clamp on
Color: epoxy powder coated
Packing: set or industrial
Loading: 25 kg for 1.2 mm material thickness
POM roller with 18.5 mm or 19 mm
Clamping clearance: 1/2"
Standard 2 stoppers
Length available: 350 - 450 mm

Inquire Now

Download PDF

Specification

EPOXY SLIDE, SINGLE-SPIKE CLAMPING *350 mm pictured

1/2" clamping: Item No. 91552
10 mm clamping: Item No. 91572

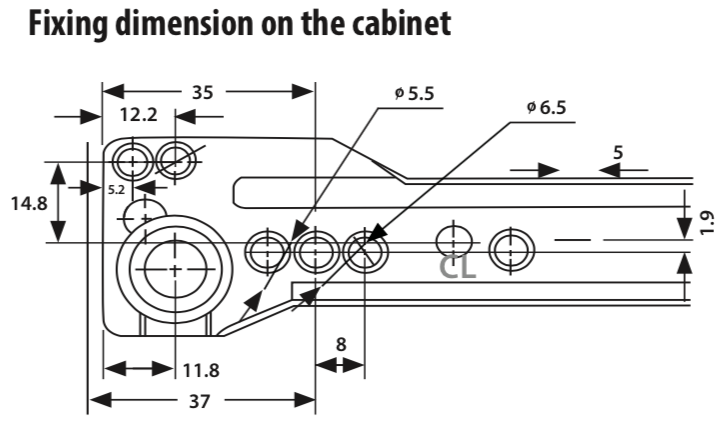

Note: Hole pattern printed represents our prototype and there are more options. It might have altered according to our customer's need.

Dimensions in mm.
