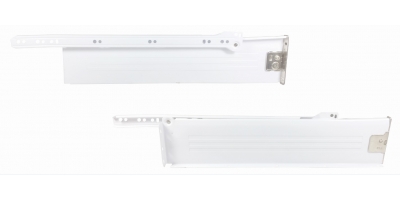

91537

Feature

• Material: steel
• Closing: self-close
• Opening: single extension
• Screwing: bottom-mount with screws
• Color: epoxy powder coated
• Packing: set or industrial
• Loading: 25 kg for 1.2 mm material thickness
• POM roller with 18.5 mm or 19 mm
• Height: 86, 118, 150 mm
• Adjustable height by a cam on the front fixing bracket
