Drawer Slides

15008

Feature

  • Material: steel
  • Closing: non-self-close
  • Opening: single extension
  • Screwing: bottom-mount with screws
  • Color: epoxy powder coated
  • Packing: set or industrial
  • Loading: 15 kg for 0.8 mm material thickness / 25 kg for 1.2 mm material thickness
  • POM roller with 18.5 mm or 19 mm

Specification

EPOXY SLIDE, NON-SELF CLOSE   *400 mm pictured

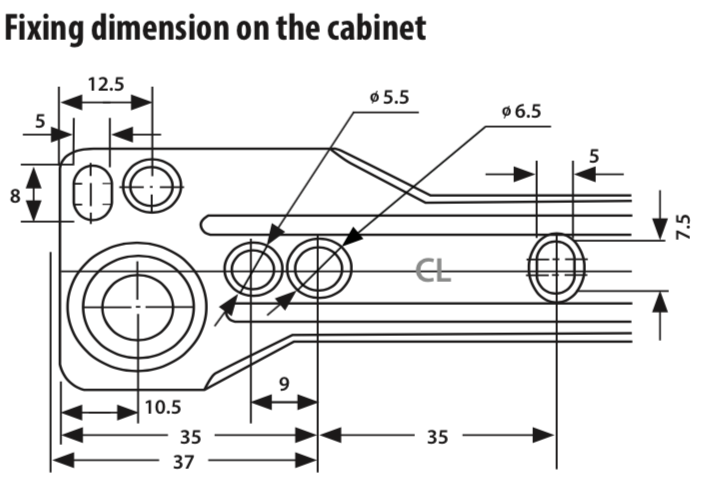

Note: Hole pattern printed represents our prototype and there are more options. It might have altered according to our customer's need.

Dimensions in mm.





Description
