Specification

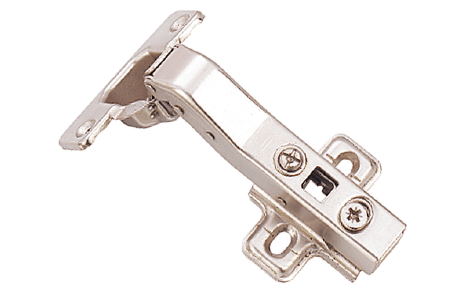

45° CORNER, SOFT-CLOSE
Note: The formulas can be used according to different types of hinge arms and they need the figures of both the hinge cup drilling distance "K" and plated height "H".
Dimensions in mm.
.png)
| ANGLE |
Soft-close,
clip on |
Self-close,
clip on |
Self-close,
slide on |
| 30° |
Item No. 56156 |
Item No. 56155 |
Item No. 56157 |
| 45° |
Item No. 56153 |
Item No. 56131 |
Item No. 56158 |
| 90° |
Item No. 56154 |
Item No. 56132 |
Item No. 56159 |
| 135° |
|
Item No. 56133 |
Item No. 56160 |
