Hinges & Lifts

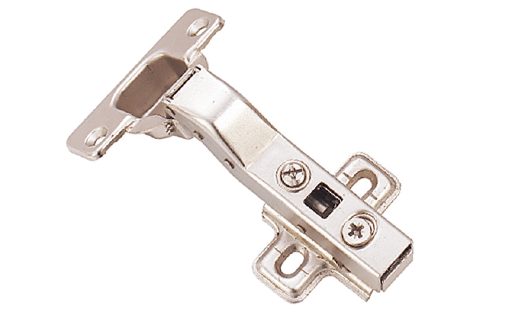

56156

Feature

  • Material: steel, cold rolled
  • Assembling: clip-on
  • Closing: soft-close
  • Opening angle: 105°
  • Hinge cup depth: 11.5 mm
  • Hinge cup diameter: 35 mm
  • Hinge cup drilling distance (K): 3 - 7 mm
  • Door thickness: 14 - 22 mm
  • Mounting: screw or press-fit dowel
  • Adjustment: horizontal side by screw / vertical height by screw / in-and-out depth by screw

Specification

30°  CORNER, SOFT-CLOSE

Note: The formulas can be used according to different types of hinge arms and they need the figures of both the hinge cup drilling distance "K" and plated height "H".

Dimensions in mm.




ANGLE Soft-close,
clip on
Self-close,
clip on
Self-close,
slide on
30° Item No. 56156 Item No. 56155 Item No. 56157
45° Item No. 56153 Item No. 56131 Item No. 56158
90° Item No. 56154 Item No. 56132 Item No. 56159
135°   Item No. 56133 Item No. 56160
