Hinges & Lifts

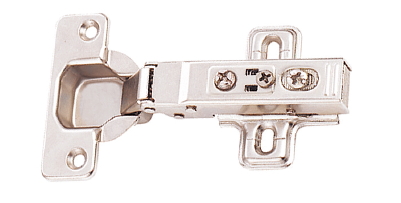

56225

Feature

  • Material: steel, cold rolled
  • Assembling: clip-on
  • Closing: soft-close, adjustable angle
  • Opening angle: 105°
  • Hinge cup depth: 11.5 mm
  • Hinge cup diameter: 35 mm
  • Hinge cup drilling distance (K): 3-7 mm
  • Door thickness: 14-22 mm
  • Mounting: screw or press-fit dowel
  • Adjustment: horizontal side by screw / vertical height by screw / in-and-out depth by screw

Specification

35 mm CLIP-ON, ADJUSTABLE SOFT-CLOSE

Note: Not every option or accessory is available for every type of hinge so please ask your needs.









Description
