Hinges & Lifts

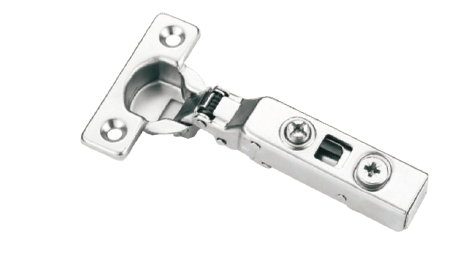

56219

Feature

  • Material: steel, cold rolled
  • Assembling: clip-on
  • Closing: soft-close
  • Opening angle: 95°
  • Hinge cup depth: 9.6 mm
  • Hinge cup diameter: 26 mm
  • Hinge cup drilling distance (K): 3-7 mm
  • Door thickness: 12-18 mm
  • Mounting: screw or press-fit dowel
  • Adjustment: horizontal side by screw / vertical height by screw / in-and-out depth by cam

Specification

26 mm CLIP-ON, SOFT-CLOSE

Note: The formulas can be used according to different types of hinge arms and they need the figures of both the hinge cup drilling distance "K" and plated height "H".

Dimensions in mm.






Description
